T-2C BUCKEYE

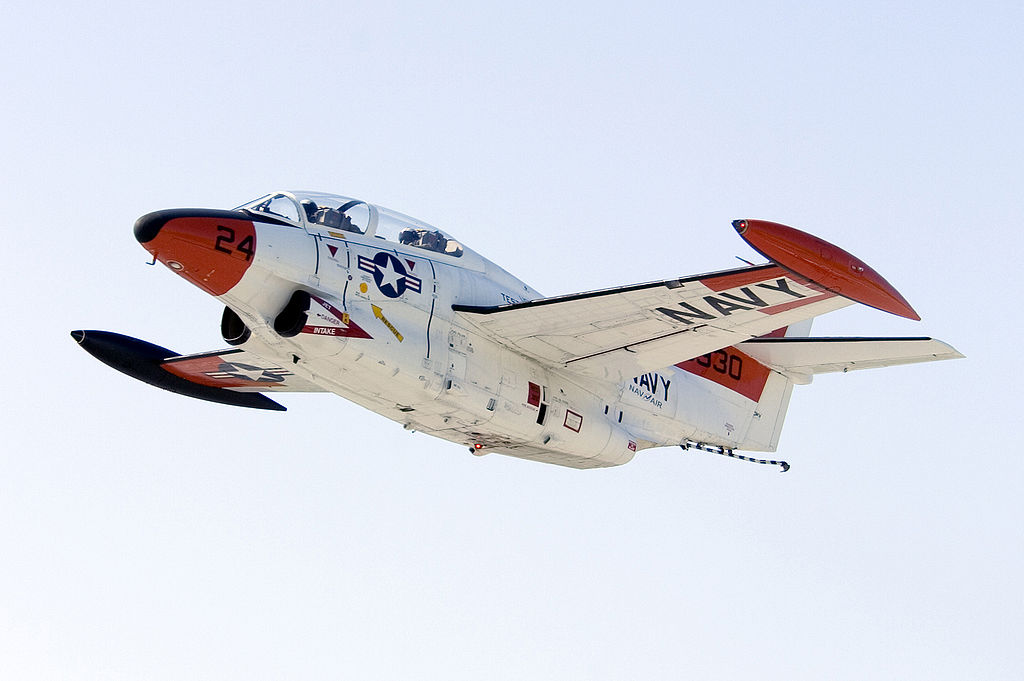

NORTH AMERICAN T-2C BUCKEYE



T-2C

The T-2C is used for intermediate and advanced training for Navy and Marine Corps pilots and Naval Flight Officers in training for jet carrier aviation and tactical strike missions.

Designed in the mid 1950s to use proven technologies wherever possible, it shares its wing with the FJ-1 Fury, one of the Navy’s earliest jet fighters. The tandem cockpit arrangement and slightly elevated rear cockpit gives the instructor good forward visibility over the student.

Both cockpits are equipped with zero-level ejection seats. For armament training, the aircraft is equipped with underwing strong points to carry bombs, rockets or gun pods, as well as an arresting hook for carrier landings.

Originally designed with a single engine, the T-2C variant, which entered fleet service in 1968, has two. Most T-2Cs have been replaced by the T-45 Goshawk. Some, however, remain in service around the fleet in various roles, as well as at the Naval Test Pilots School at NAS Patuxent River, Maryland.

SPECIFICATIONS
Span: 38′ 1.5″ ft.
Length: 38′ 3″ ft.
Height: 14′ 9.5″ ft.
Weight: 8,115 lb – Empty
13,190 lb – Max
Armament: Provisions for 3,500 Ibs of disposable stores, including light bombs, rocket-launcher pads and gun pads, carried on four external hardpoints.
Engines: Two General Electric J85-GE-4 producing 2,950 lb thrust each.
Crew: Two; Instructor pilot & student pilot
Cost: $
Tail Number: 158583
Years in Service: 1959 – 2008
Nickname: Attack Thunder Guppy

PERFORMANCE
Maximum Speed: 530 mph
Cruising Speed: 400 mph
Range: 910 miles
Service Ceiling: 45,500 feet
